The Solara Vision 110W solar panel is the world's tough glass fronted panel - it's so strong you can drive over it! Designed and manufactured in Germany, the Solara Vision Solar Panel is suited to locations where there's a chance of the solar panel being struck or when the weather is 'extreme'.

One example is the roof of a motorhome, where there is the possibility of the panel being struck by low hanging branches. For marine applications, where weather conditions can sometimes be very harsh and there is always the possibility of the panel being accidentally hit or stood on, with a Vision panel, you won't need to worry about broken glass. Vision panels are guaranteed for use in a salt water (marine) environment.

Top quality for professional off-grid applications:

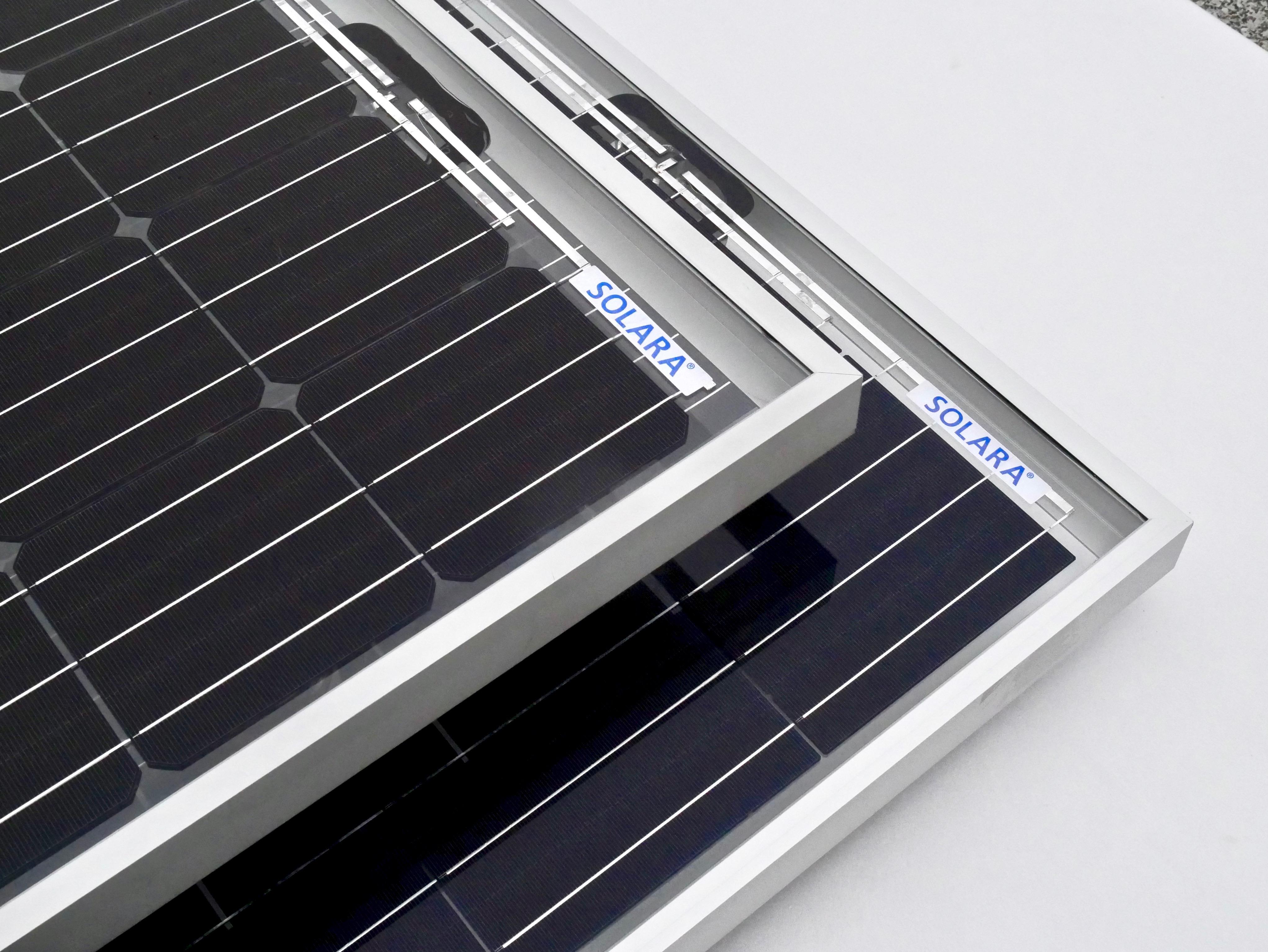

Using a unique 'glass-glass' design, the Vision solar panel introduces new levels of robustness to the solar market. Each panel sandwiches the solar cells between two layers of a specially formulated version of laminated safety glass (similar to that in your car's windscreen). The result is a glass solar panel that you can walk on, stand on or even drive on.

Your item has been added to your basket

Solara Vision 110W Extreme Solar Panel

Call for Price

Call +44 (0) 1981 241 668

Technical Specification

Model: Vision 110
Peak Power: 110W
Rated Voltage: 23.50V
Rated Current: 4.68A
Open Circuit Voltage: 27.62V
Short Circuit Current: 4.95A
Maximum System Voltage: 1000V
Temperature Co-efficient - Power: -0.45%/ºC
Temperature Co-efficient - Voltage: -0.36%/ ºC
Temperature Co-efficient - Current: 0.03%/ºC
Panel Efficiency: 14.5%
Weight: 9.4 kg

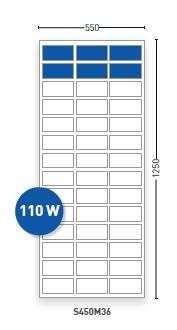

Unit Dimensions (mm): 1250 x 550 x 35

(Specifications at standard test conditions (STC) - STC is defined as: irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature)
*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
